What is Raw JSON/Text HSL?

Written by Medha Anand

Updated on July 27th, 2022

Contact Us

If you still have questions or prefer to get help directly from an agent, please submit a request.
We’ll get back to you as soon as possible.

Please fill out the contact form below and we will reply as soon as possible.

  • Getting Started
    Build Deploy Analyse Manage Account Bot Deactivation
  • Bot Building
    Essentials Smart Skills Steps User Messages Bot Responses Entities Connections Customisations User feedback collection Testing Whatsapp Bots NLU Bot Maintenance
  • Smart Agent Chat
    Set up Admin Settings MyChats Section (Agent Inbox) Live Traffic Section Teams Section Archives Section Analytics Plans on Smart Agent Chat
  • Conversation Design
    Design Basics Design Guides Designing for Platforms Designing WhatsApp Bots
  • Developer Guides
    Code Step Integration Static Step Integration Shopify Integration SETU Integration Exotel Integration CIBIL integration Freshdesk KMS Integration PayU Integration Zendesk Guide Integration Twilio Integration Razorpay Integration LeadSquared Integration USU(Unymira) Integration Helo(VivaConnect) Integration Salesforce KMS Integration Stripe Integration PayPal Integration CleverTap Integration Fynd Integration HubSpot Integration Magento Integration WooCommerce Integration Microsoft Dynamics 365 Integration
  • Deployment
    Web SDK WhatsApp Facebook Instagram Sunshine Conversation LINE Google Business Messages Telegram MS Teams Bot as an API iOS SDK Android SDK
  • External Agent Tool Setup
    Zendesk Chat Salesforce Service Cloud Freshchat Zoho NICE CXOne Gorgias
  • Analytics & Reporting
    Intelligent Analytics
  • Notifications
    SMS Notifications Success Measurement
  • Commerce Plus
    Catalog Integration Bot Building Guide Channel Deployments Unified ML Pipeline Documentation
  • Troubleshooting Guides
    Error Messages FAQs
  • Release Notes
+ More

Let us first understand what a JSON is. It is a specific format in which you can send data in key-value pairs. The values we send through JSON can be of the data type - Number, String, Array, etc.

JSON follows this format -

{
    "name": "Daniel", //string
    "age": 28, //number
    "phone_number": ["9988667711","9988776611","9988554433"], //array
    "education": { //object
        "school_name": "Royal Heritage School"
        "roll_number": 25
    }
}

The above format is a very basic example of a JSON structure.

All responses on Haptik's bot are JSONs. One of these responses is a Raw JSON/Text HSL. We can use Raw JSON/Text for the following applications -

  • Adding a simple text response.
  • Copying a Chat Element from one Step to another Step.
  • Adding Custom Chat Element.

Adding a simple text response

We can use the Raw JSON/Text HSL in a Step for adding a simple text response in the Chat Element.  When that step gets triggered in the conversation, this text response will be sent by the bot.

Copying a Chat Element from one Step to another Step

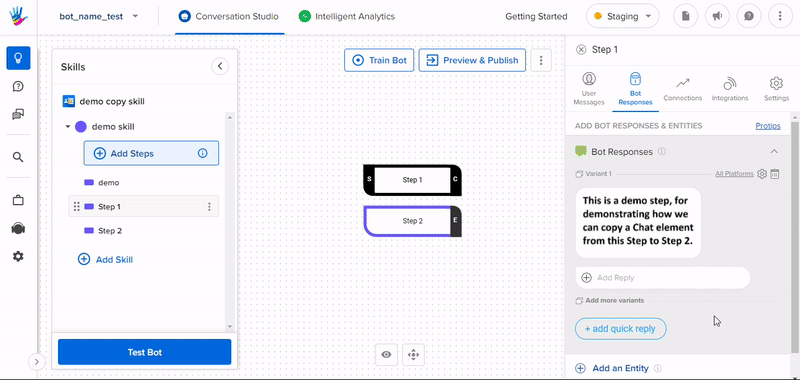

Another way to use a Raw JSON/Text HSL is for copying the Chat Elements from one Step to another Step. Once you have copied the JSON from one Step with the help of the COPY JSON button, you can open another Step, and in the Bot Responses section, select the Raw JSON/Text HSL, and paste the JSON, as shown.

Adding Custom Chat Element

Our SDK supports certain HSLs for displaying the Bot Responses, but at times you might want to have your own custom Chat Element, that is when you will be using this RAW JSON/ text HSL. You can enter the Raw HSL JSON directly and that element will be rendered by the bots. Sometimes a custom chat element is not like other standard elements that we support on our SDK.

Consider, you want to add a specific element like a drop-down menu. You will have to write a JSON for that and add it in the Raw JSON/Text HSL. Now, Haptik's SDK doesn't support a drop-down menu chat element. In this case, when the chat triggers the Step that has this drop-down menu HSL configured, the whole JSON will be displayed in the chat, rather than the drop-down menu.

To solve this,

  1. You can create your own SDK if you don't want to use the Haptik SDK, and configure the required Chat Elements in it. Here, you need to make sure that your SDK supports all the Chat Elements from Haptik's SDK, or else when Haptik HSLs will be triggered, the whole JSON will be displayed in the chat.
  2. You can choose a channel whose SDK supports all the Chat Elements that are supported by the Haptik SDK, as well as the custom chat elements that you want for your bot.
