Customizing the SDK

The SDK can be configured in a variety of ways to fit in seamlessly with the overall experience of the parent application.

Glossary

• primary-color
• tablet-bg-color
• typography
• widget-positioning
• move-the-bot-widget
• custom-button
• privacy-policy-url
• custom-css
• mode
• enable-typing-suggestions
• enable-user-feedback
• bot-type
• composer-placeholder
• chat-bubble-text-desktop
• chat-bubble-text-mobile
• user-feedback-tags
• user-feedback-questions
• hide-composer
• ignore-storage
• initialize-language
• no-cross
• no-chat-bubble
• no-header
• voice-bot-initial-input
• onChatWindowHide
• file-attachment-icon-visibility
• disable-bot-prompt-sound
• bot-prompt-sound-url

UI Settings

primary-color

The primary color is used throughout the SDK. This should ideally be the same as your brand's primary color.

default: #00000

window.haptikInitSettings = {
...
primary-color: "#00000"
...
};

Use this setting to change the background fill color. Note that this is only for tablet mode.

window.haptikInitSettings = {
...
tablet-bg-color: "#00000"
...
};

typography

The font family is used throughout the SDK. It must be a google font. You can see available fonts here: https://fonts.google.com/

default: Roboto

window.haptikInitSettings = {
...
typography: "Roboto"
...
};

widget-positioning

The portion of the window where the SDK is rendered (along with the Let's chat with us button).

Possible Values:

• bottom-left: Places the SDK on the bottom left part of the page
• bottom-right: Places the SDK on the bottom right part of the page
• center: Places the SDK in the center of the page.

default: Bottom Left

window.haptikInitSettings = {
...
widget-positioning: "bottom-left"
...
};

move-the-bot-widget

If you want to adjust the bot widget on your website/store according to your preference, the below script will help you accomplish that:

<style>
.xdk-iframe{
    padding-bottom: 100px;
}
</style>

custom-button

Whether to hide the main chat button or not. Set this to true if using your own custom button implementation. When set to true hides the default button.

default: false

window.haptikInitSettings = {
...
custom-button: false
...
};

privacy-policy-url

If GDPR is enabled, you can add a URL to your Privacy Policy page through init settings. Users will be redirected to this URL when they click on the link in the GDPR view. If not provided users will be redirected to Haptik's privacy policy page.

window.haptikInitSettings = {
 ...
 "privacy-policy-url": "URL_TO_YOUR_PRIVACY_POLICY_PAGE",
 ...
};

custom-css

A custom CSS file can be injected into the XDK, which will allow modifying its styles. This parameter takes a path of the CSS file, which can either be relative or absolute.

Example: /overrides.css

.header, .minimized-view, .composer, .composer > textarea {
 background-color : black !important;
}
.header, .minimized-view, .composer > textarea {
 color: white !important;
}
.taskbox-body {
 border-radius : 0 !important;
}
.taskbox-body .taskbox-tab {
 width : 100px !important;
}
.taskbox-body .taskbox-tasks>.task:hover {
 background-color: beige !important;
}

Use the file as below.

window.haptikInitSettings = {
 ...
 "custom-css": "./overrides.css",
 ...
};

List of CSS selectors:

For chat icon:

For task-box:

For composer:

For message window:

mode

This setting governs the initial view of the SDK. Supporting use cases where the SDK should always be open.

Possible Values:

• default: Shows a default Let's Chat with us button
• fsm: Loads with the chat window open by default without a cross button

default: Default

Currently "mode": "fsm" is not supported on IVA with custom signup.

Feature Settings

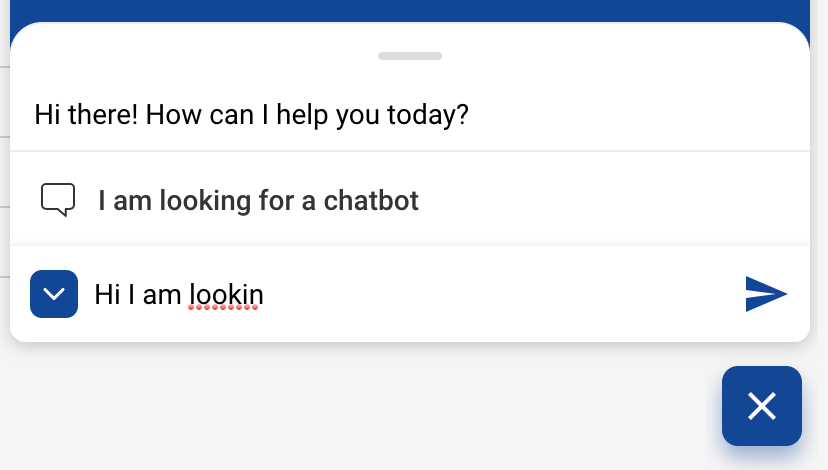

enable-typing-suggestions

Enables typing suggestions for the bot. Typing suggestions are autocomplete suggestions that show up for users when they type. This gives the user some context around the capabilities of the bot.

default: false

window.haptikInitSettings = {
...
enable-typing-suggestions: false
...
};

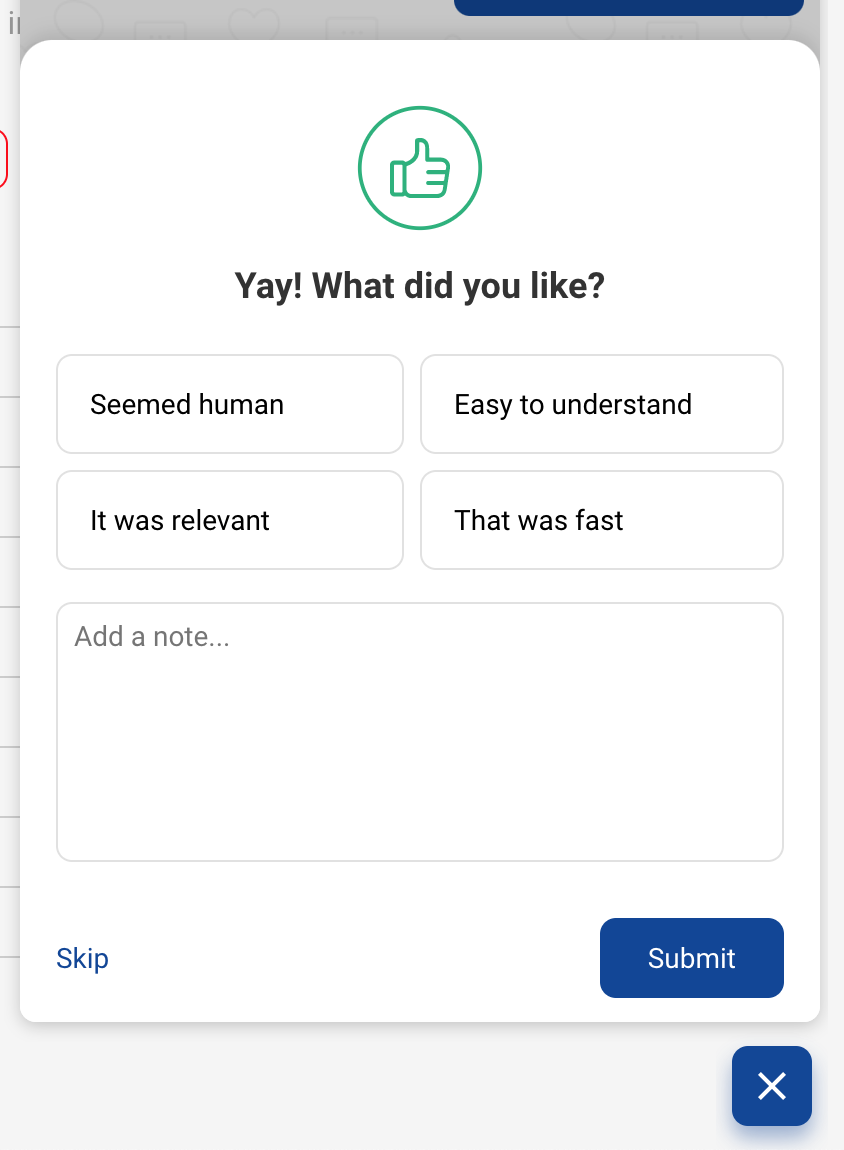

enable-user-feedback

Enables per message user feedback for the bot. Adds feedback icons to all bot responses to freeform user input in order to collect feedback. It's a 2-stage process where the user can quickly give a thumbs-up/thumbs-down. Once done, the user can then also optionally give more detailed feedback in the form of tags and a freeform comment.

default: false

window.haptikInitSettings = {
...
enable-user-feedback: false
...
};

bot-type

The SDK supports both voice and text base conversations. This setting can set that accordingly.

Possible Values:

• TEXT: A text based conversational interface where the user is expected to use the keyboard to send messages.

• VOICE: A voice based conversational interface where the user can also send messages using voice. The bot messages are spoken out aloud.

default: TEXT

window.haptikInitSettings = {
...
bot-type: "TEXT"
...
};

Text Settings

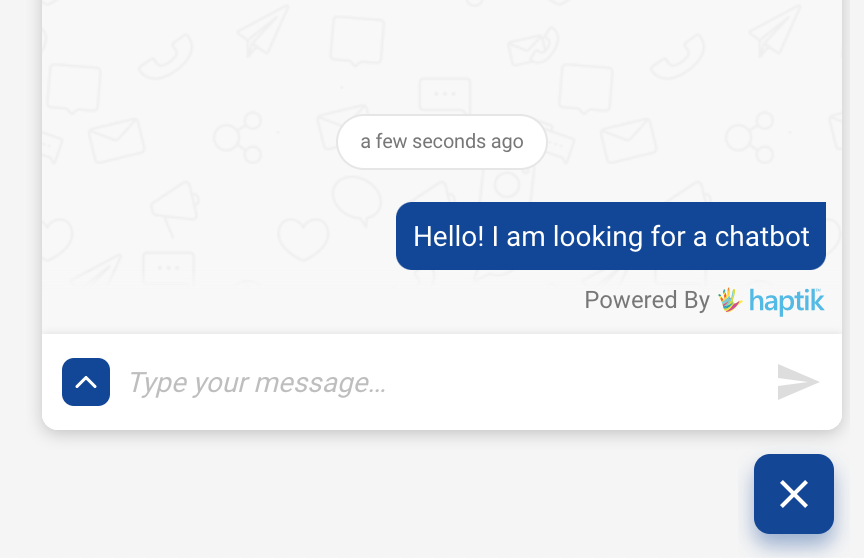

composer-placeholder

The placeholder text for the composer (typing area). This is the text that's shown in the typing area when it's empty

default: Type here...

window.haptikInitSettings = {
...
composer-placeholder: "Type here..."
...
};

chat-bubble-text-desktop

The chat bubble text on desktop browsers. Set it to _NONE_ if you don't want to show any text and just the chat icon.

default: Chat with Us

window.haptikInitSettings = {
...
chat-bubble-text-desktop: "Chat with us"
...
};

chat-bubble-text-mobile

The chat bubble text on mobile browsers. Set it to _NONE_ if you don't want to show any text and just the chat icon.

default: Chat with Us

window.haptikInitSettings = {
...
chat-bubble-text-mobile: "Chat with Us"
...
};

user-feedback-tags

An object containing textual copies of the tags to show when showing the per usage message feedback. Note: User feedback needs to be enabled

Object Structure + Default

 'user-feedback-tags': {
 // tags to show when feedback is positive
 // <array of strings>
 'positive': [
 'Seemed human',
 'Easy to understand',
 'It was relevant',
 'That was fast'
 ],
 // tags to show when feedback is negative
 // <array of strings>
 'negative': [
 'Unrelated response',
 'Delayed response',
 'Repetitive response',
 'Unhelpful message'
 ]
 }

user-feedback-questions

An object containing textual copies of the questions to show when showing the per usage message feedback. Note: User feedback needs to be enabled

Object Structure + Default

 'user-feedback-questions': {
 // when feedback is positive
 'positive': 'Yay! What did you like?',
 // when feedback is negative
 'negative': 'Sorry about that. What went wrong?'
 }

Disable Settings

hide-composer

Hides the composer so that the user is not given the option to type anything. This is useful when building actionable and highly directed bots.

default: false

window.haptikInitSettings = {
...
hide-composer: true
...
};

ignore-storage

In order to store the conversation history, mark the ignore-storage parameter as false.

If ignore-storage is true the storage is disabled, i.e. a new user is created every time the user comes back and starts conversing with the bot. No messages/user information is stored in local storage. Essentially, every user is treated like a first-time user.

default: false

window.haptikInitSettings = {
...
ignore-storage: false
...
};

initialize-language

Code of language you want to open bot with. For eg en, hi. (Optional). We support ISO_639-1 language codes.

default: en

window.haptikInitSettings = {
...
initialize-language: "en"
...
};

no-cross

Hides the cross button so that user is unable to close the chat window. This is useful when building experiences with custom chat buttons and other customised UI elements.

default: false

window.haptikInitSettings = {
...
no-cross: false
...
};

The user will be slightly able to see the close button but they won't be able to click on the button.

no-chat-bubble

Hides the chat bubble. The SDK then needs to be opened and controlled programmatically.

default: false

window.haptikInitSettings = {
...
no-chat-bubble: false
...
};

no-header

Hides the chat window header. This is useful when integrating inside native apps and webviews where there's already a header present outside the webview.

default: false

window.haptikInitSettings = {
...
no-header: false
...
};

Miscellaneous Settings

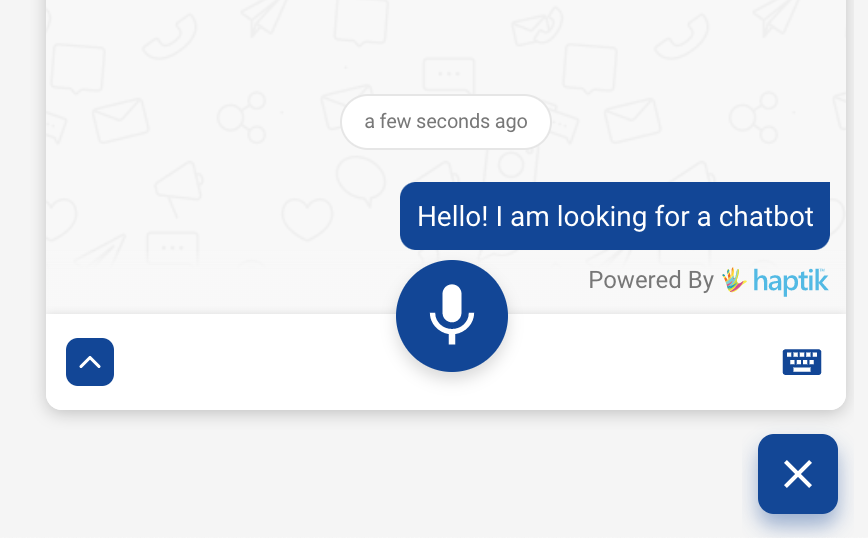

voice-bot-initial-input

The default state of the voice bot. Should it by default have the text composer or the voice composer?

Possible Values:

• TEXT: Show the text composer by default
• VOICE: Show the voice composer by default

default: VOICE

window.haptikInitSettings = {
...
voice-bot-initial-input: "VOICE"
...
};

onChatWindowHide

In case you want to be notified whenever the chat window is closed/hidden, you can pass a callback function to this parameter. This callback function will now be called every time the chat window is closed.

<script>
 const hideEventCallback = function () {
 console.log("Haptik JS SDK is now hidden.");
 }
 window.haptikInitSettings = {
 'business-id': YOUR_BUSINESS_ID,
 'client-id': YOUR_CLIENT_ID,
 'base-url': BASE_URL,
 onChatWindowHide : hideEventCallback
 }
</script>

file-attachment-icon-visibility

In case you want to manage the visibility of the file attachment icon, you can use this function.

window.haptikInitSettings = {
...
file-attachment-icon-visibility: "value_name"
...
};

You can use three types of values in the value_name field, as mentioned above:

• only_agent (default - File attachment icon shown only when chat is in Agent chat mode)
• always (File attachment icon shown all the time)
• hidden (File attachment icon is never shown)

disable-bot-prompt-sound

This disables the notification sounds ideally triggered when a bot prompt messages are added to the bot.

default: false

window.haptikInitSettings = {
...
disable-bot-prompt-sound: false
...
};

bot-prompt-sound-url

Use this setting to change the bot prompt sound. If no custom tone/sound is provided by the user, the bot loads the default tone.

default: https://toolassets.haptikapi.com/js-sdk/sound/notification_new.mp3 */

window.haptikInitSettings = {
...
bot-prompt-sound-url: https://toolassets.haptikapi.com/js-sdk/sound/notification_new.mp3 */
...
};
