What is HSL?

Written by Medha Anand

Updated on August 26th, 2022

Contact Us

If you still have questions or prefer to get help directly from an agent, please submit a request.
We’ll get back to you as soon as possible.

Please fill out the contact form below and we will reply as soon as possible.

  • Getting Started
    Build Deploy Analyse Manage Account Bot Deactivation
  • Bot Building
    Essentials Smart Skills Steps User Messages Bot Responses Entities Connections Customisations User feedback collection Testing Whatsapp Bots NLU Bot Maintenance
  • Smart Agent Chat
    Set up Admin Settings MyChats Section (Agent Inbox) Live Traffic Section Teams Section Archives Section Analytics Plans on Smart Agent Chat
  • Conversation Design
    Design Basics Design Guides Designing for Platforms Designing WhatsApp Bots
  • Developer Guides
    Code Step Integration Static Step Integration Shopify Integration SETU Integration Exotel Integration CIBIL integration Freshdesk KMS Integration PayU Integration Zendesk Guide Integration Twilio Integration Razorpay Integration LeadSquared Integration USU(Unymira) Integration Helo(VivaConnect) Integration Salesforce KMS Integration Stripe Integration PayPal Integration CleverTap Integration Fynd Integration HubSpot Integration Magento Integration WooCommerce Integration Microsoft Dynamics 365 Integration
  • Deployment
    Web SDK WhatsApp Facebook Instagram Sunshine Conversation LINE Google Business Messages Telegram MS Teams Bot as an API iOS SDK Android SDK
  • External Agent Tool Setup
    Zendesk Chat Salesforce Service Cloud Freshchat Zoho NICE CXOne Gorgias
  • Analytics & Reporting
    Intelligent Analytics
  • Notifications
    SMS Notifications Success Measurement
  • Commerce Plus
    Catalog Integration Bot Building Guide Channel Deployments Unified ML Pipeline Documentation
  • Troubleshooting Guides
    Error Messages FAQs
  • Release Notes
+ More

Haptik defines a superset of UI elements that are available across multiple platforms. These UI elements are then converted to their platform equivalent (js-sdk, android, ios, facebook-messenger, etc..) if they are not available on that specific platform. Eg. Forms are converted to quick replies on the Facebook platform and collected over free form.

HSL Elements

Haptik is a chatbot platform where we build chat flows for various use cases. Chat flows are nothing but exchange of messages. These messages can range from being plain text messages to complex UI elements like carousel, smart actions etc.

To build complex UI elements, we introduced Haptik Specific Language, our in-house format of messages. HSL is essentially JSON with a special meaning within the Haptik system. It's a mutual agreement between the backend and the frontend to decide how some of the chat elements should look like and what action they can perform.

All of Haptik’s frontend properties (Android SDK, iOS SDK, Web SDK) are configured to render HSL objects.

The basic anatomy of an HSL looks something like this.

{
 "text": "str",
 "type": "str",
 "data": "dict"
}

A HSL Object is made up 3 primary properties: text, type & data.

  • text - Defines what's seen on the message bubble.
  • type - Defines the main function of the HSL. For e.g. whether it's a carousel or a smart action or an order receipt etc.
  • data - Contains all the supporting data needed for the particular type.

A quick example for a button smart action.

{
 "text":"Hey there. This is a HSL Button Smart Action with 1 Actionable. Tapping on the actionable will send a message stored in the payload",
 "type":"BUTTON",
 "data":{
 "items":[
 {
 "actionable_text":"Tap",
 "location_required":"false",
 "uri":"",
 "is_default":0,
 "type":"TEXT_ONLY",
 "emoji":""
 "payload":{
 "link":"",
 "message":"Hi, I just tapped on an actionable.",
 "gogo_message":""
 },
 }
 ]
 }
}

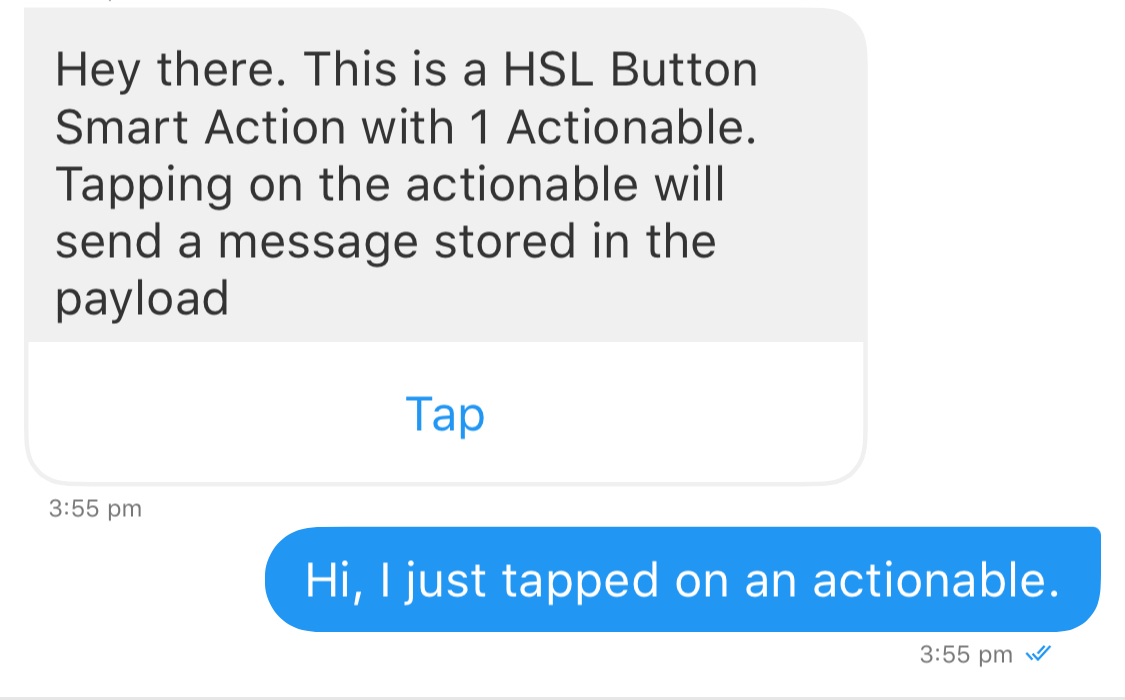

The above message will render like this on front end:



The next message was sent by tapping on the Tap actionable.

HSL is a very powerful language that has enabled us to make a lot of use-cases easier to achieve. There are quite a few combinations, that can be used to get the best out of it. You can read this article to know more about the properties of HSL.

You can also copy an HSL from one Step to another if you do not want to create one from scratch. Learn more about it, here.
