How to Use WhatsApp Lists and Buttons

Written by Soham Amburle

Updated on May 31st, 2023

Contact Us

If you still have questions or prefer to get help directly from an agent, please submit a request.
We’ll get back to you as soon as possible.

Please fill out the contact form below and we will reply as soon as possible.

  • Getting Started
    Build Deploy Analyse Manage Account Bot Deactivation
  • Bot Building
    Essentials Smart Skills Steps User Messages Bot Responses Entities Connections Customisations User feedback collection Testing Whatsapp Bots NLU Bot Maintenance
  • Smart Agent Chat
    Set up Admin Settings MyChats Section (Agent Inbox) Live Traffic Section Teams Section Archives Section Analytics Plans on Smart Agent Chat
  • Conversation Design
    Design Basics Design Guides Designing for Platforms Designing WhatsApp Bots
  • Developer Guides
    Code Step Integration Static Step Integration Shopify Integration SETU Integration Exotel Integration CIBIL integration Freshdesk KMS Integration PayU Integration Zendesk Guide Integration Twilio Integration Razorpay Integration LeadSquared Integration USU(Unymira) Integration Helo(VivaConnect) Integration Salesforce KMS Integration Stripe Integration PayPal Integration CleverTap Integration Fynd Integration HubSpot Integration Magento Integration WooCommerce Integration Microsoft Dynamics 365 Integration
  • Deployment
    Web SDK WhatsApp Facebook Instagram Sunshine Conversation LINE Google Business Messages Telegram MS Teams Bot as an API iOS SDK Android SDK
  • External Agent Tool Setup
    Zendesk Chat Salesforce Service Cloud Freshchat Zoho NICE CXOne Gorgias
  • Analytics & Reporting
    Intelligent Analytics
  • Notifications
    SMS Notifications Success Measurement
  • Commerce Plus
    Catalog Integration Bot Building Guide Channel Deployments Unified ML Pipeline Documentation
  • Troubleshooting Guides
    Error Messages FAQs
  • Release Notes
+ More

Table of Contents

Table of Contents Interactive Messages for Two-way Communication How are these different from HSMs? List Messages on WhatsApp Reply Buttons on WhatsApp HSL Structure Video Headers Customization Examples

Table of Contents

Interactive Messages for Two-way CommunicationHow are these different from HSMs?List Messages on WhatsAppReply Buttons on WhatsAppExamples

Interactive Messages for Two-way Communication

Interactive messages are nothing but User Interface elements, i.e. Lists and Reply Buttons, that let users select their queries on WhatsApp bots. This helps in improving user engagement in conversations.

There are two interactive elements -

  • List Messages: List messages are messages that include a menu of up to 10 options. This type of massage offers a simple and more consistent way for users to make a selection when interacting with a business.
  • Reply Buttons: These are the messages that include up to 3 options, wherein each option is a button. This type of massage offers a quick way for users to make a selection from a menu when interacting with a business. Reply buttons have the same user experience as interactive templates with buttons.

When you compare interactive messages to text-based lists, interactive messages provide a simple and more consistent format for people to find and select what they want from a business. During testing, users had a higher comprehension level while interacting with these features.

You can read more about it here.

Delete

Interactive messages do not require templates or pre-approvals.

How are these different from HSMs?

Unlike HSMs which are sent from WhatsApp Manager, the interactive messages are sent from the Haptik platform. Interactive message elements can appear in the middle of a flow, and they can be used N number of times without any additional cost.

You can learn more about WhatsApp HSMs here.

List Messages on WhatsApp

A list message includes a menu that consists of a maximum of 10 menu options. When a user taps on the List item, it opens up a list of options a user can select from. So, instead of going through a numbered menu and typing 1, 2, 3, for doing a selection, a list of buttons now makes the experience 3x faster.

In the unlikely event of wanting to add a list of more than 10 options, you can add these as -

  • A menu option that says View More.
  • A sub-menu will appear when a user taps on any of the main menu options.

This type of message offers a simpler and more consistent way for users to make a selection when interacting with a business.

Following are the parts of a List:

  • List Header
  • Section Titles (Optional)
  • Row Title
  • Row Description (Optional)
  • Send Button

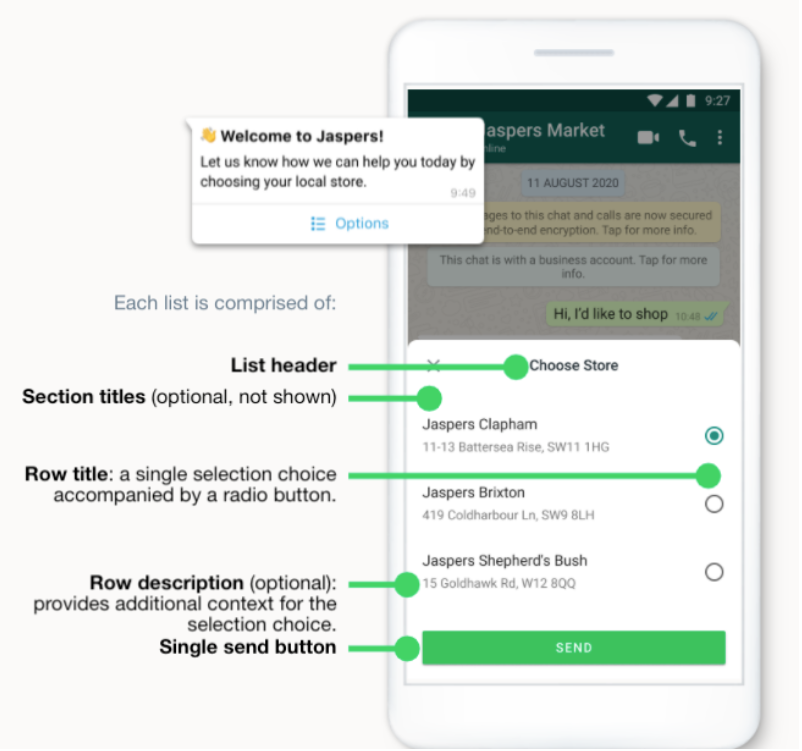

Following representation shows the list of elements in action, for your understanding -

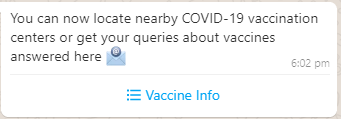

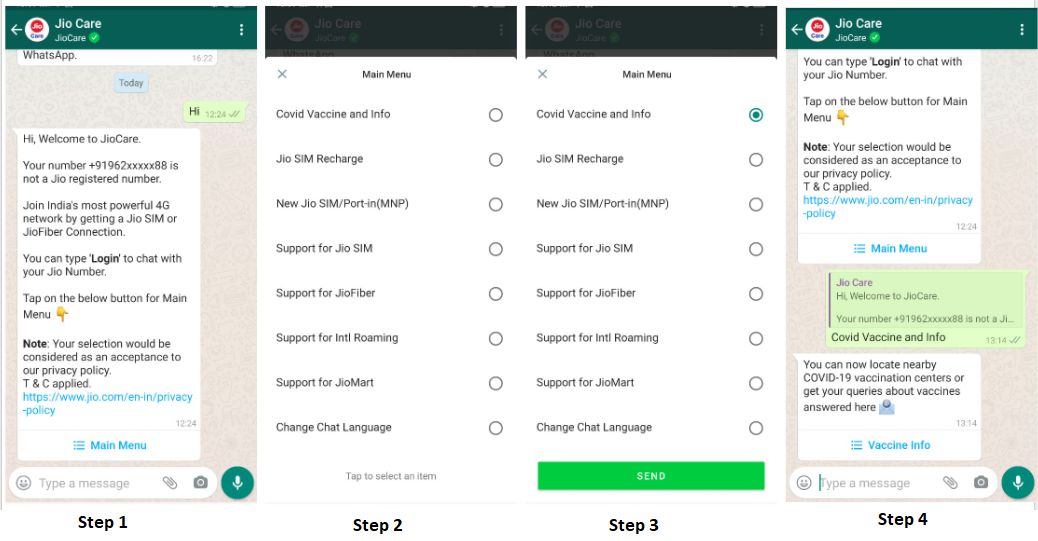

This is how it looks on WhatsApp -

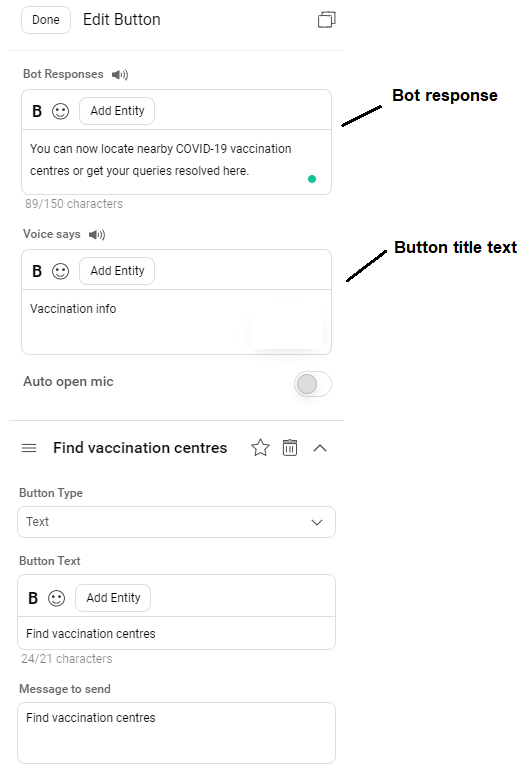

This is how it looks on the Conversation Studio:

Following are the examples of some of the use cases, where you can implement a List Message -

  • View menu
  • Reason for Cancellation
  • Providing Feedback
  • Raise a complaint
  • A take-out menu
  • Selection of nearby stores or locations
  • Available reservation times
  • Choosing a recent order to repeat
Delete

Points to note -

  • Button character limit: 24 characters.
  • Button format: Text only (comes with a Hamburger menu icon)
  • List options limit: 10 options.
  • The list does not support multiple simultaneous selections; only one selection at a time. However, users can go back in a conversation and make a different selection.
  • List options are used to navigate inside conversations and cannot be redirected. The bot responses after selecting a List option can have buttons, QRs, another List, or rich media.
  • The List does not require templates or pre-approvals.

Reply Buttons on WhatsApp

This User Interface element on WhatsApp lets the users click on a button to make a selection or to provide input for the bot and get a resolution. It is similar to, how a user would perform any action on an app but now it is available on WhatsApp. This feature makes the entire conversation journey significantly faster, particularly when choosing between two options such as Yes/No, Order Now/Order Later, and so on.

Reply buttons are particularly valuable for ‘personalized’ use cases where a generic response is not adequate.

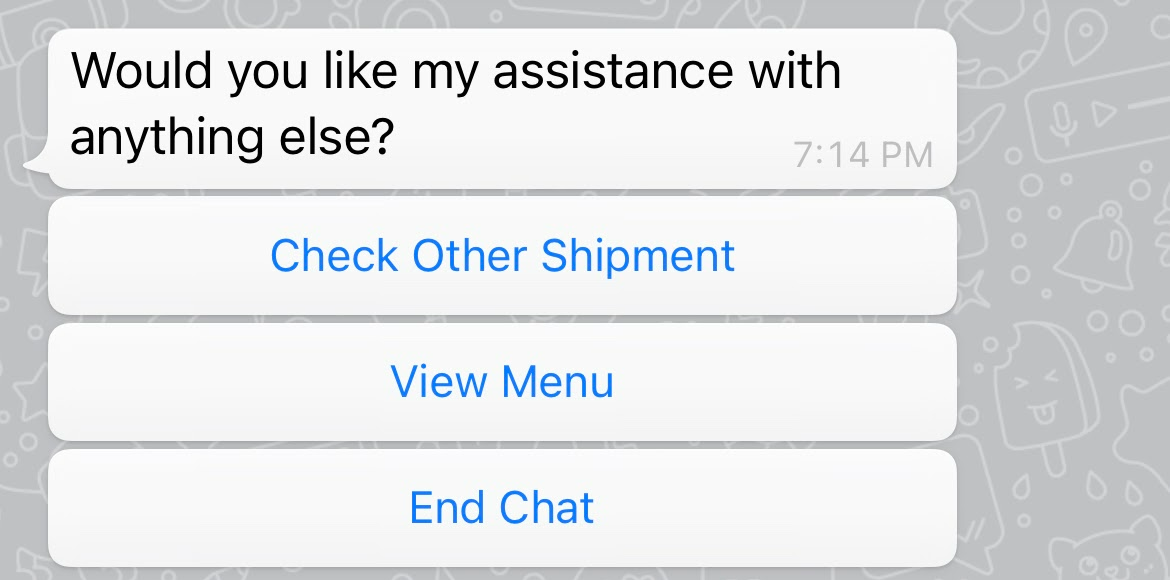

This is how it looks on WhatsApp -

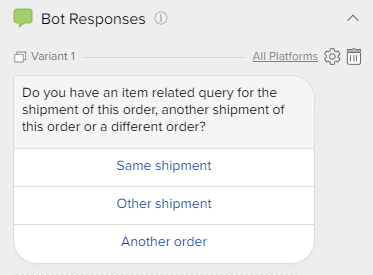

This is how it looks on Conversation Studio:

You can use this Reply Button whenever you have 3 or less than 3 options to display to the user.

 Following are the examples of some of the use cases, where you can implement a Reply Button -

  • Choose Yes/No.
  • Recharge now/Recharge later.
  • Choosing a payment method - cash/card/net banking
  • Recharge Now / Recharge Later
  • Reordering a previous order
  • Requesting a return
  • Choosing a payment method
  • Changing personal details

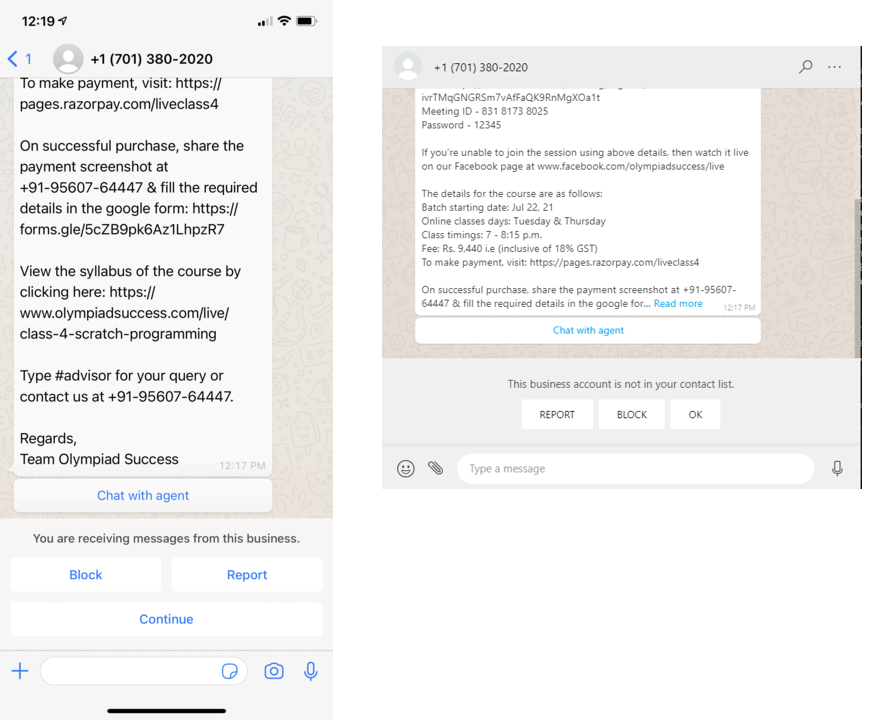

This is how a button will appear along with read more information in case the text is truncated on Whatsapp -

Delete

Points to note -

  • Reply Button character limit: 20 characters
  • Reply Button number limit: Max 3 (Text only)
  • Redirects via multiple buttons only work in HSMs and not in two way communication
  • The 3 buttons can be, either in all-text format, or one button can be a re-direct reply button.
  • A redirect reply button does not come with a redirect icon as seen in Call-to-Action Buttons in HSM templates.
  • Once a button is selected, it gets disabled while other buttons continue to be enabled. Users can scroll up and select any of the other buttons. (However, this is not recommended as unlike on the web, in WhatsApp this experience could lead to Bot Break)

HSL Structure

These elements need a separate message type since they can’t be created using any of the existing HSL types.

Both of the elements have common parameters body, footer, & header.

Reply Buttons:

  • Reply buttons need a list of text messages for their buttons and header type,
  • The HSLJSON format for adding buttons is as follows:
    {
       "type": "WHATSAPP_INTERACTIVE_BUTTON",
       "text": "<Mandatory Body Text>",
       "header": "HEADER_DATA (text string or media url)",
       "header_type": "text/document/video/image (this can be blank when no header is present)",
       "footer": "",
       "buttons": ["button1", "button2", "button3"]
    }

List element:

  • The list needs a series of section objects for its buttons and a button text to open the modal.
  • The HSLJSON format for adding list elements is as follows:
    {
       "type": "WHATSAPP_INTERACTIVE_LIST",
       "text": "<Mandatory Body Text>",
       "header": "header_text (this can be blank when no header is present)",
       "footer": "",
       "button_text": "button text to open list modal",
       "sections": [{
           "title": "section title (can be empty for a single section)",
           "buttons": [{
               "title": "button title",
               "description": "optional description"
           }]
       }]
    }

The character limit for List elements -

List Element Character Limit
Body Text 1024
Header 60
Footer 60
Button Text 20
Section Title 24
Button Title  24
Button Description 72

You can learn more about it, here.

Video Headers

Using video in headers needs WA containers to store the video for both the older media-id & the newer media URL methods.

"video": {
   "link": "http(s)://the-url.mp4",
   "caption": "video"
}
"video": {
  "id": "your-media-id",
  "caption": "your-video-caption"
}

This will increase the storage needed on WA containers for media and might need more frequent cleanup.

Customization Examples

1. Interactive Buttons  -

a. Normal button:

{   "type": "WHATSAPP_INTERACTIVE_BUTTON",
   "text": "This is a test message",
   "header_type": "",
   "footer": "this is footer text",
   "buttons": ["button1", "button2", "button3"]
}

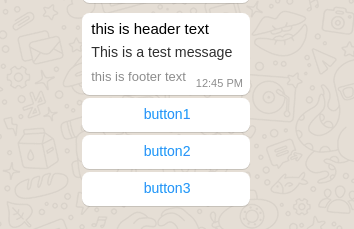

b. Text Header:

{
   "type": "WHATSAPP_INTERACTIVE_BUTTON",
   "text": "This is a test message",
   "header": "this is header text",
   "header_type": "text",
   "footer": "this is footer text",
   "buttons": ["button1", "button2", "button3"]
}

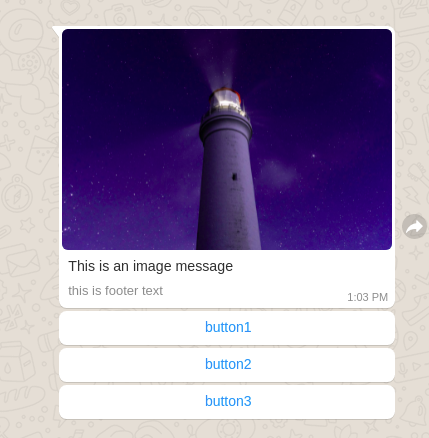

c. Adding Button to Images

{
   "type": "WHATSAPP_INTERACTIVE_BUTTON",
   "text": "This is an image message",
   "header": "https://haptikappimg.haptikapi.com/uploads/f8757cc5fda314b85d2b090d17132786.jpg",
   "header_type": "image",
   "footer": "this is footer text",
   "buttons": ["button1", "button2", "button3"]
}

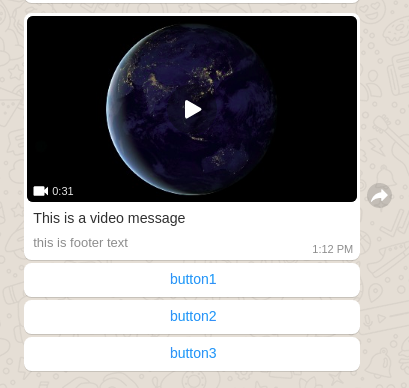

d. Adding Button to Videos

{
   "type": "WHATSAPP_INTERACTIVE_BUTTON",
   "text": "This is a video message",
   "header": "https://file-examples-com.github.io/uploads/2017/04/file_example_MP4_1280_10MG.mp4",
   "header_type": "video",
   "footer": "this is footer text",
   "buttons": ["button1", "button2", "button3"]
}

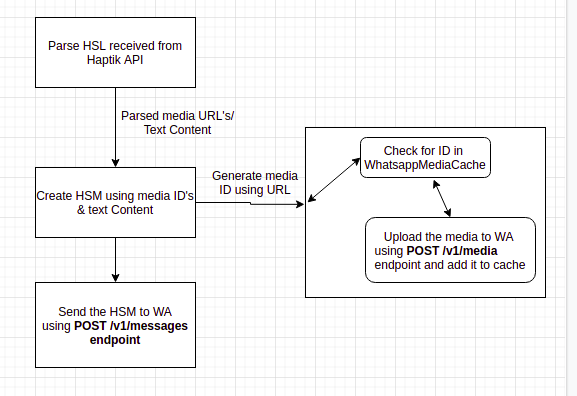

The video to be sent will be uploaded to Conversation Studio. Conversation Studio will validate the content type & size of the file uploaded. The corresponding s3 URL for this video will be stored in the HSL JSON.

When this HSL is sent to Message Delivery, it will generate a media ID for this video if it isn’t present already. This media ID will then be used when sending videos to WA containers.

For every media, we initially upload the media to WA containers and reuse the media ID when sending media to users. These IDs are stored in WhatsappMediaCache<(business_id, media_url)::media_id>

2. Interactive List -

a. Normal List:

{   "type": "WHATSAPP_INTERACTIVE_LIST",
   "text": "We have the following pickup times available for today which would you prefer?",
   "header": "Hi! Welcome to Sandra's Cakes",
   "footer": "Yummy Cakes when you just feel like it",
   "button_text": "Available Time Slots",
   "sections": [{
       "title": "",
       "buttons": [{
           "title": "13:00",
           "description": "Collection: Crouch End Bakery"
       }]
   }]

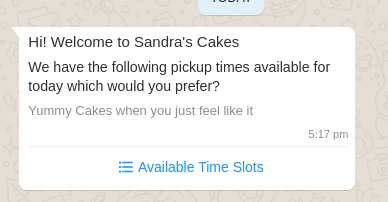

 List Preview:

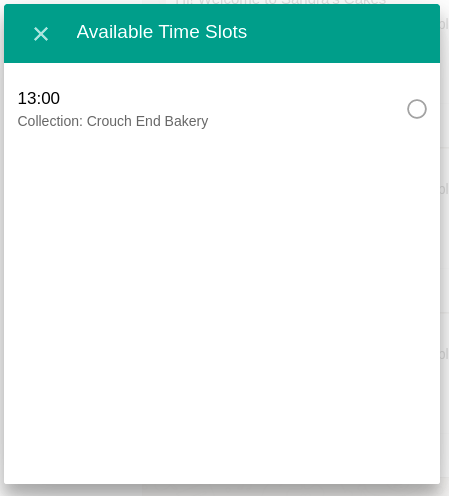

List selection Modal:

b. List with multiple sections:

{
    "type": "WHATSAPP_INTERACTIVE_LIST",
    "text": "We have the following pickup times available for today which would you prefer?",
    "header": "Hi! Welcome to Sandra's Cakes",
    "footer": "Yummy Cakes when you just feel like it",
    "button_text": "Available Time Slots",
    "sections": [{
            "title": "Afternoon slots",
            "buttons": [{
                    "title": "13:00",
                    "description": "Collection: Crouch End Bakery"
                    "id": "payload for 13:00"
                },
                {
                    "title": "13:30",
                    "description": "Collection: Hampstead Bakery"
                    "id": "payload for 13:30"
                },
                {
                    "title": "13:00",
                    "description": "Collection: Hampstead Bakery"
                    "id": "payload for 13:00"
                }
            ]
        },
        {
            "title": "Evening slots",
            "buttons": [{
                    "title": "18:00",
                    "description": "Collection: Crouch End Bakery"
                    "id": "payload for 18:00"
                },
                {
                    "title": "18:30",
                    "description": "Collection: Hampstead Bakery"
                    "id": "payload for 18:30"
                },
                {
                    "title": "17:00",
                    "description": "Collection: Crouch End Bakery"
                    "id": "payload for 17:00"
                }
            ]
        }
    ]
}

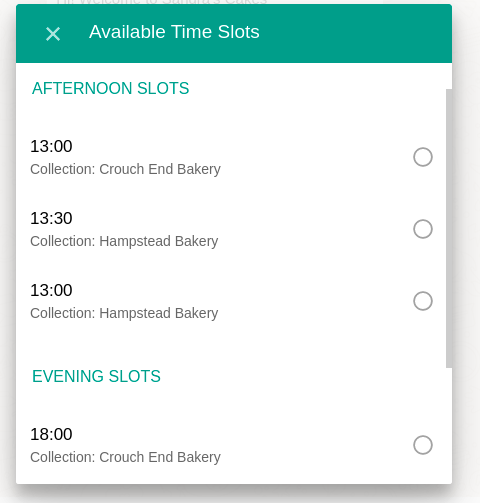

List Selection Modal:


Delete

Point to note:

List preview will remain the same as a normal list.
