What are entity settings?

Written by Medha Anand

Updated on October 14th, 2022

Contact Us

If you still have questions or prefer to get help directly from an agent, please submit a request.
We’ll get back to you as soon as possible.

Please fill out the contact form below and we will reply as soon as possible.

  • Getting Started
    Build Deploy Analyse Manage Account Bot Deactivation
  • Bot Building
    Essentials Smart Skills Steps User Messages Bot Responses Entities Connections Customisations User feedback collection Testing Whatsapp Bots NLU Bot Maintenance
  • Smart Agent Chat
    Set up Admin Settings MyChats Section (Agent Inbox) Live Traffic Section Teams Section Archives Section Analytics Plans on Smart Agent Chat
  • Conversation Design
    Design Basics Design Guides Designing for Platforms Designing WhatsApp Bots
  • Developer Guides
    Code Step Integration Static Step Integration Shopify Integration SETU Integration Exotel Integration CIBIL integration Freshdesk KMS Integration PayU Integration Zendesk Guide Integration Twilio Integration Razorpay Integration LeadSquared Integration USU(Unymira) Integration Helo(VivaConnect) Integration Salesforce KMS Integration Stripe Integration PayPal Integration CleverTap Integration Fynd Integration HubSpot Integration Magento Integration WooCommerce Integration Microsoft Dynamics 365 Integration
  • Deployment
    Web SDK WhatsApp Facebook Instagram Sunshine Conversation LINE Google Business Messages Telegram MS Teams Bot as an API iOS SDK Android SDK
  • External Agent Tool Setup
    Zendesk Chat Salesforce Service Cloud Freshchat Zoho NICE CXOne Gorgias
  • Analytics & Reporting
    Intelligent Analytics
  • Notifications
    SMS Notifications Success Measurement
  • Commerce Plus
    Catalog Integration Bot Building Guide Channel Deployments Unified ML Pipeline Documentation
  • Troubleshooting Guides
    Error Messages FAQs
  • Release Notes
+ More

Table of Contents

Table of Contents Entity Settings Previous Context Tags Payload Keys Note

Table of Contents

Previous Context TagsPayload Keys

Entity Settings

We have 4 main Advanced Settings options under entities.

Previous Context Tags

What is Context from an IVA perspective?

Context is linguistically defined as the background in which the conversation is taking place. From the IVA perspective, it can involve retaining the memory of any piece of information that has been either derived from past user behavior, the action performed by the IVA or has been explicitly given by the user.

What is stored in the form of Context on an IVA?

  • It can involve information like steps traversed by the IVA in the conversation, Entity values collected, ML Module which sent the last reply e.g Disambiguation, Small Talk, etc.
  • The user’s name, email, phone number, etc explicitly provided by him, will also form a part of the context. The context needs to be stored before it can be used.

When is the context information deleted?

The context is deleted by the system in case if any of the following events occur:

  • When a Context Clear Step is encountered by the IVA in the conversation
  • When an agent marks the conversation as COMPLETE from the Agent Chat tool
  • When a chat auto-completes after 24 hours + 8 minutes of inactivity.

Where can you configure the previous_context_tag?

  • The previous_context_tag is configured at an entity level and is present in the Entity under the Advanced options.

Why and when to use the previous_context_tag?

  • It should be used when you want an entity value to be filled after the bot has asked for it

For eg. If you have a use case where you have two similar types of entities in the same flow with different values to be filled in each one of those, then you can differentiate them using the prev_context_tags. So an entity value will be filled up only if certain words are present in the previous bot response which we have put under prev_context_tags (the unique words/phrases present in the bot response is the prev_context_tags for that entity)

Is it mandatory to use it on every entity?

  • No, it is not mandatory to use previous_context_tags on all entities, it entirely depends on the use case, and if it is required.

How to use a prev_context_tag?

  • Let’s take an example where we need to store 2 different mobile numbers from a user in the same flow as the primary & secondary mobile numbers.

How to configure previous_context_tag for multilingual bots?

In the case of multilingual bots, you should add previous_context_tags in all the languages that the bot is active for.

Example -

There is a step where we will be asking a user to provide primary & secondary mobile numbers, so here we will need 2 different entities with the same type and validation to store them separately.

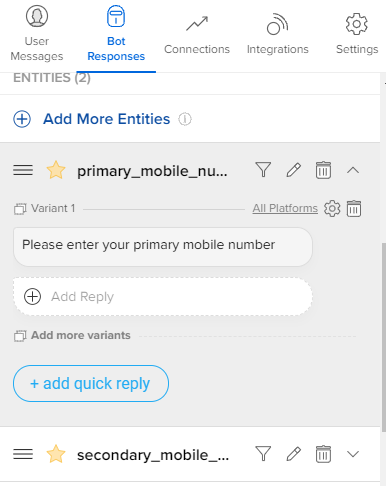

Created an entity for the primary number which has a Bot Response as “Please enter your primary number” and for secondary number with Bot Response as “Please enter your secondary number” as shown below

So here as you can see the unique word which differentiates both the entities is “primary” which we will use as prev_context_tag for the primary mobile number entity.

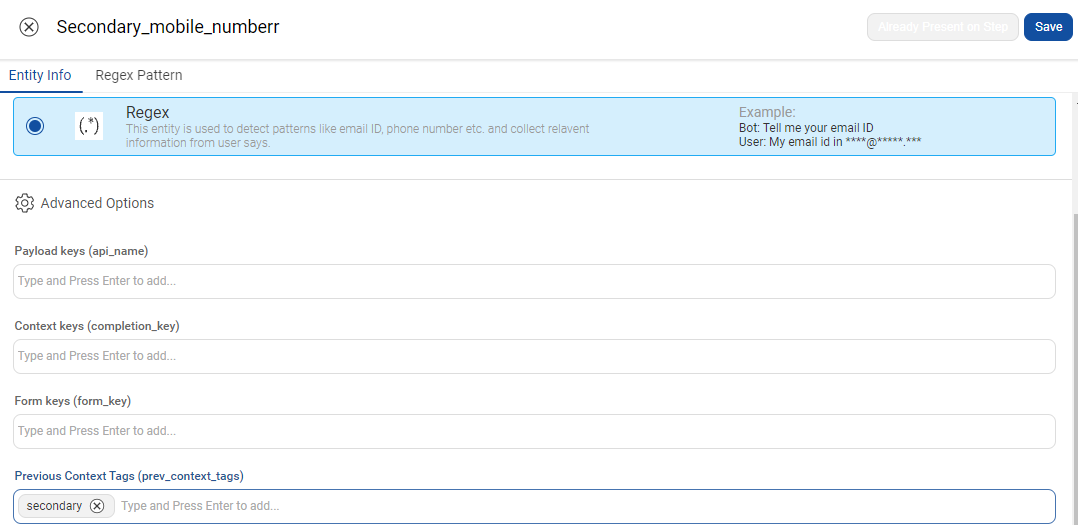

and “secondary” for secondary mobile number entity as shown below

Now, whenever the Bot Response has a “primary” word it will store the user entered mobile number in the primary_mobile_number entity only as the primary keyword is used as a prev_context_tag in that entity and will not store it in the secondary_mobile_number entity.

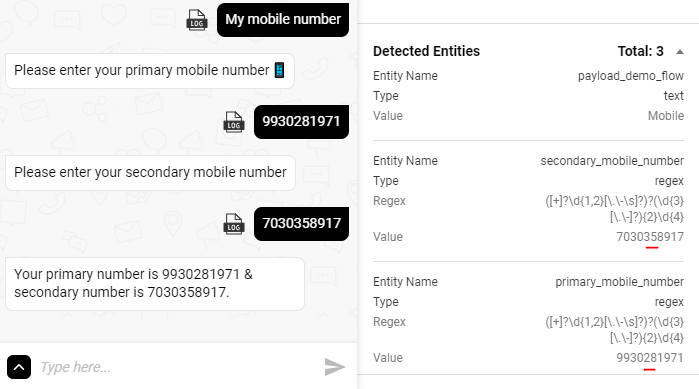

Check the below image with debug logs on how the previous_context_tag works and stores the value in the respective entity.


Delete

If you are updating the bot response, ensure the previous_context_tag is updated too.

In a bot response, anything before last 500 characters is not used for understanding the context, i.e. you should add the previous_context_tag from the last 500 characters of the Bot Response.

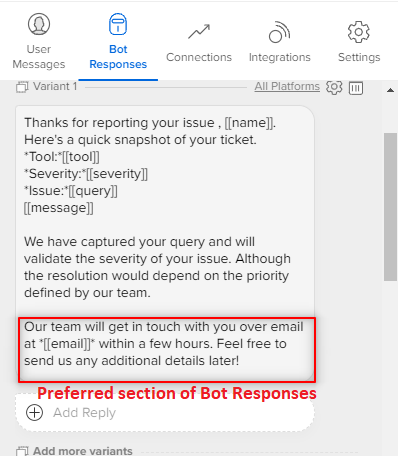

In the above image, as the bot response is a long message, a word/phrase from the last 500 characters should be added as the previous_context_tag to capture the corresponding entity.

Payload Keys

What is Payload?

Payload is the data that you want to send with a user text via button/Quick reply which is not visible to the user but can be stored in the entity and we can use this data in further flows wherever required.

Where can you use this?

You can use this function when you are showing the same user message for various options but want the selected option to be saved in the entity.

How does payload functionality work?

In a flow where we have multiple products to display with the same text, we will pass a unique value as a hidden message in the button using the payload, and whenever a user selects an option, the data is passed as a hidden message button gets stored in the entity. Once we have the payload value stored in the entity, we can use this entity to start a certain flow or if required we can use this entity value in future flows.

How to use the payload?

Implementation of the payload can be divided into 2 parts

A. Storing the payload values in the entity B. Passing the correct payload values in the CTA

Here is an example to understand this concept -

Let’s take a use case where we need to display multiple plans for Netflix with the same button text as Know more. So after the user selects any particular plan by clicking on the Know more button, it should land on that particular plan & start the flow.

So here we need to pass a unique value for every plan in the payload and store these values in an entity. After the user selects an option using Know more CTA, a payload will be passed with the entity value which will trigger the required flow using a connection of entity by value.

Why do we need an Entity here?

If we do not use an entity to store the value and distinguish the flow for the same Know more button, the bot will not understand which button was selected by the user and will trigger the wrong flow by treating it as a user message. So instead we pass a hidden message with a value that is stored in the entity that helps in transition or future flows.

Implementation

The following is an example of showing different types of plans for a media streaming platform -

  • Creating & storing the values in the entity

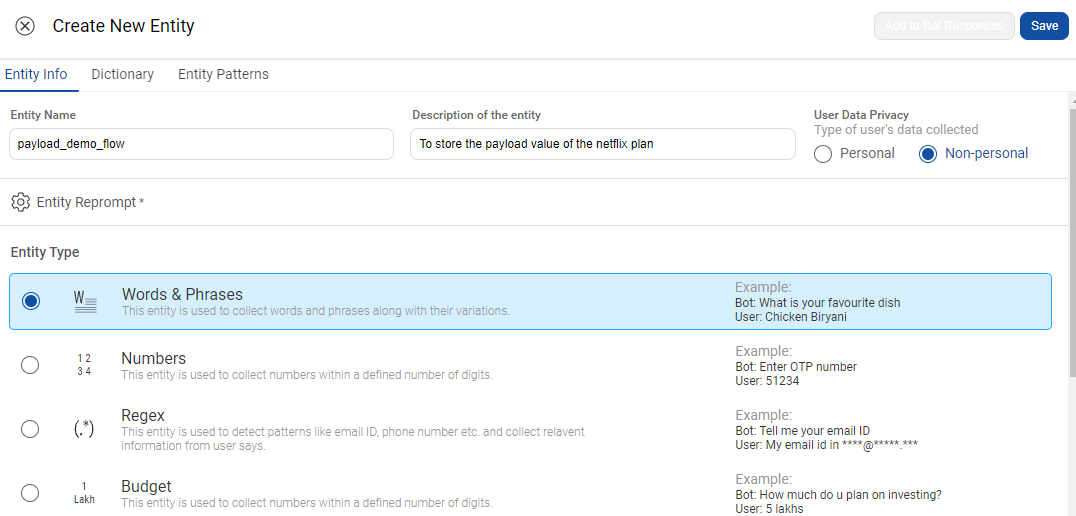

    • Create a Word & phrases entity

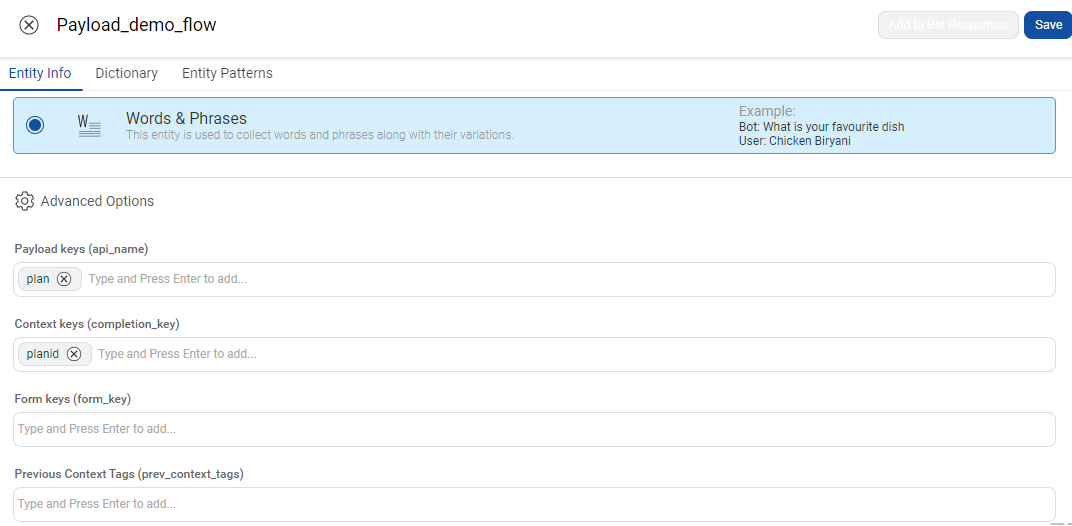

    • Click on Advanced options and enter the Payload_keys & Context_keys you want as per your use case, in the below example we have used plan & planid for purchase a plan use case

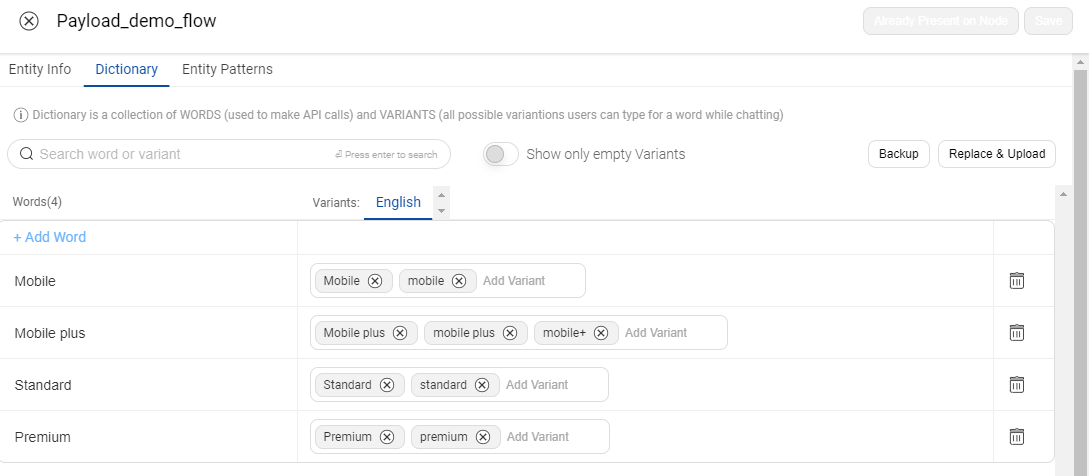

    • Click on the Dictionary option present at the top and enter all Entity values you need for your buttons. In this case, as we have 4 plans so we created 4 dictionary values with proper variations as shown below
      Save the entity and click on Add to bot response to add the entity on that step.
      As the
      entity is already created with all the values, now we need to create a CTA from where the user can select the option.

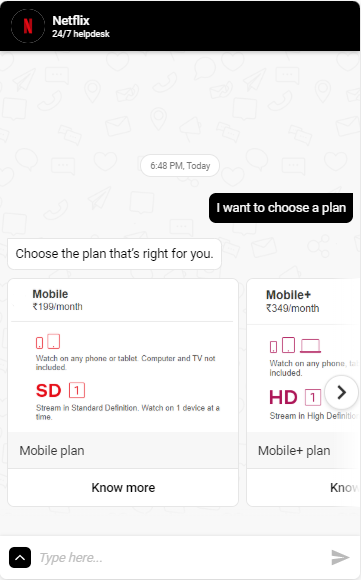

      In the below example, we are using a carousel to display the different plans to users i.e Mobile, Mobile+, Standard, and Premium as added in the
      Entity which will have the same button text as Know more.
  • Passing the payload value in the CTA

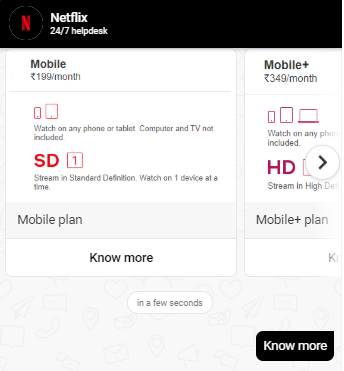

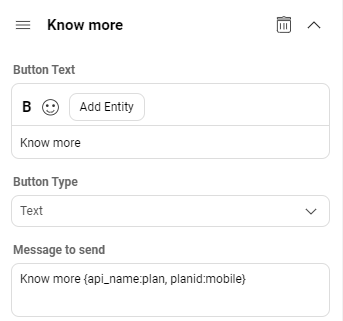

    • Add a Know more button with button type as Text in the carousel and pass the payload value with the proper syntax in the Message to send the box
    • Syntax: Button text{api_name:payload_key, completion_key:entity_value}
      This is the basic syntax for creating a payload where Button text is nothing but the text which is displayed as a user message on the bot after clicking on the button as shown below, in this case, it is Know more
      api_name key will stay as it is for all the implementation.
      payload_key is the name you have given under the Advanced Settings of the
      entity. This will be the same in all buttons for this use case, in this case, we have used plan as the payload key.
      completion_key is the name you have given for the context key under Advanced Settings of the
      entity, in this case, we have used planid as the context key.
    • entity_value is the value you want to store in the entity when a user clicks on a CTA and this value will be different for every Button, in this case, the entity values are mobile, mobile plus, standard, the premium which we have entered under the Dictionary of the entity.

      The entity value is the only parameter that will be different in each Know more button.

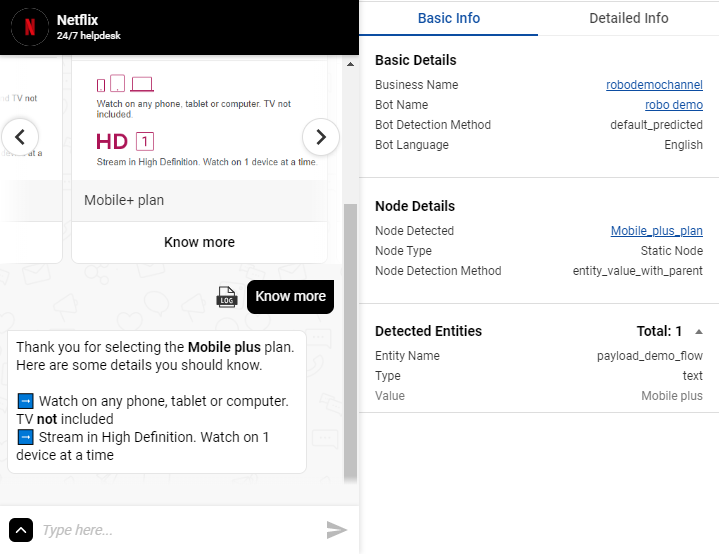

As you can see after selecting the Mobile+ plan the entity value is Mobile plus which was passed in the payload - Know more {api_name:plan, planid:mobile plus}

Note

  1. payload_key, completion_key, and entity_value will be needed while creating the entity.
  2. You cannot use capital letters to create any payload parameters.

Sample use cases for using payload -

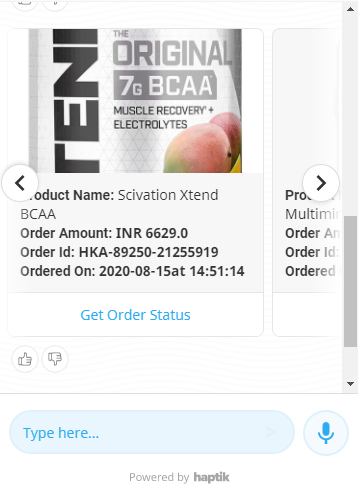

  1. Showing different orders

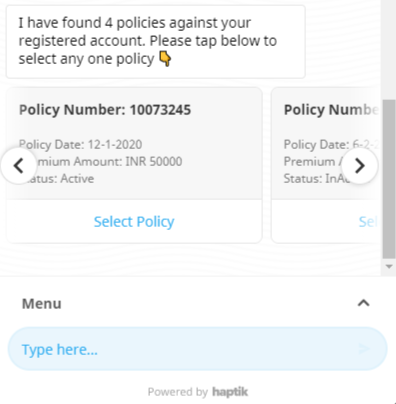

  2. Showing multiple policies
