What are the guidelines for Connections?

Written by Medha Anand

Updated on October 26th, 2021

Contact Us

If you still have questions or prefer to get help directly from an agent, please submit a request.
We’ll get back to you as soon as possible.

Please fill out the contact form below and we will reply as soon as possible.

  • Getting Started
    Build Deploy Analyse Manage Account Bot Deactivation
  • Bot Building
    Essentials Smart Skills Steps User Messages Bot Responses Entities Connections Customisations User feedback collection Testing Whatsapp Bots NLU Bot Maintenance
  • Smart Agent Chat
    Set up Admin Settings MyChats Section (Agent Inbox) Live Traffic Section Teams Section Archives Section Analytics Plans on Smart Agent Chat
  • Conversation Design
    Design Basics Design Guides Designing for Platforms Designing WhatsApp Bots
  • Developer Guides
    Code Step Integration Static Step Integration Shopify Integration SETU Integration Exotel Integration CIBIL integration Freshdesk KMS Integration PayU Integration Zendesk Guide Integration Twilio Integration Razorpay Integration LeadSquared Integration USU(Unymira) Integration Helo(VivaConnect) Integration Salesforce KMS Integration Stripe Integration PayPal Integration CleverTap Integration Fynd Integration HubSpot Integration Magento Integration WooCommerce Integration Microsoft Dynamics 365 Integration
  • Deployment
    Web SDK WhatsApp Facebook Instagram Sunshine Conversation LINE Google Business Messages Telegram MS Teams Bot as an API iOS SDK Android SDK
  • External Agent Tool Setup
    Zendesk Chat Salesforce Service Cloud Freshchat Zoho NICE CXOne Gorgias
  • Analytics & Reporting
    Intelligent Analytics
  • Notifications
    SMS Notifications Success Measurement
  • Commerce Plus
    Catalog Integration Bot Building Guide Channel Deployments Unified ML Pipeline Documentation
  • Troubleshooting Guides
    Error Messages FAQs
  • Release Notes
+ More

Table of Contents

When should you add a connection?When should you have incoming connections to a non-start step?

When should you add a connection?

  • If chat flow contains a conditional logic and you need to take action based on the user response or entity value

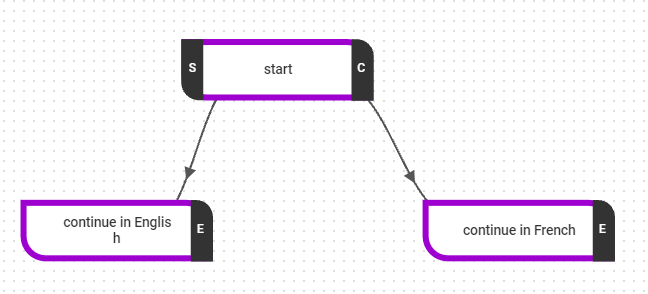

    For example: When you would like the user to select the preferred language before continuing with the chat flow.
  • If the chat contains a linear flow, but as we have a conditional logic for validation, split the logic into two steps and transition to child step is done using dependent response or entity based transition.
  • Do not mark the Step as Context Clear Step if there is a connection to another Step on the basis of the entity. As marking a Step as Context Clear Step clears out all the entity values collected till the present Step, the connection won't proceed further because the IVA will lose the information at the Context Clear Step.

When should you have incoming connections to a non-start step?

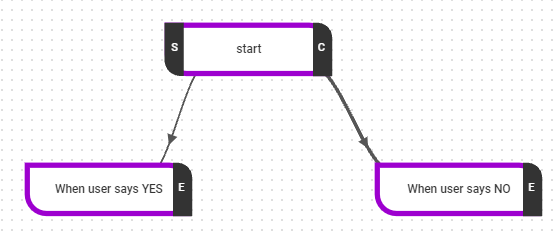

Parent step connected to two child steps and entity value-based transition

When a user wants to apply for a loan. ‘Lead Generation steps’ should be able to understand the user's goal and guide the user through the loan application process and collect the phone_number, email, confirmation entities. Check with the user if the representative can call the user right away and save the user's response in the ‘confirmation’ entity. Use entity value-based transition to traverse to the child step.

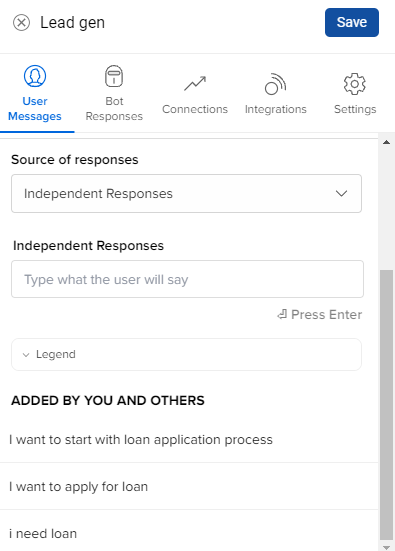

  • User Message - User Message section should contain different patterns of user utterances. Consider ‘Lead Generation’ step-

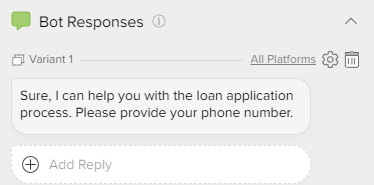

  • Bot Response - Add a message to confirm that the bot understood user’s goal and ask user to provide the phone number.

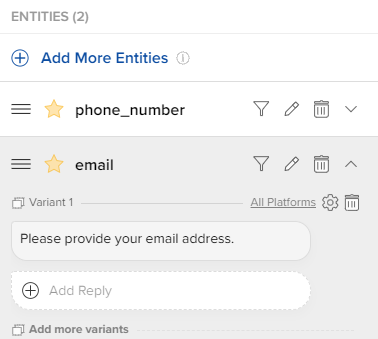

  • Entity - Create mandatory entities phone_number, email and confirmation entities. Add the default message for all these entities.

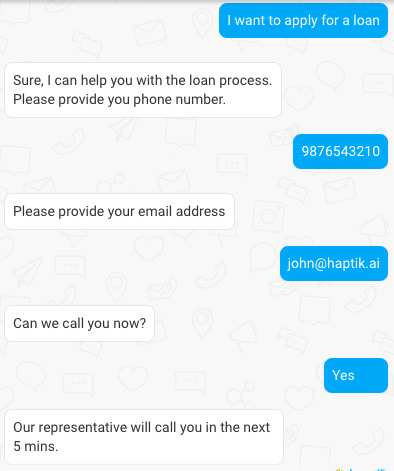

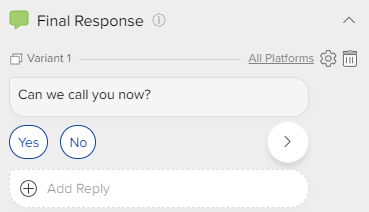

  • Final Response - Once the user selects one of the quick responses ‘Yes’ or ‘No’. Use that to traverse to the child step. User chat -

Make the confirmation entity non-mandatory and use the final response to get a confirmation from the user to transition to the child step.
