Creating a Code Step to Output Step Connection
You can transition from a code step to any output step basis a set of rules/conditions applied on the output JSON from the code step.
Transition Basis Rules on Output JSON:
You can apply a combination of rules combined by either AND
or OR
to traverse from one step to the other.
You can add rules in the following way:

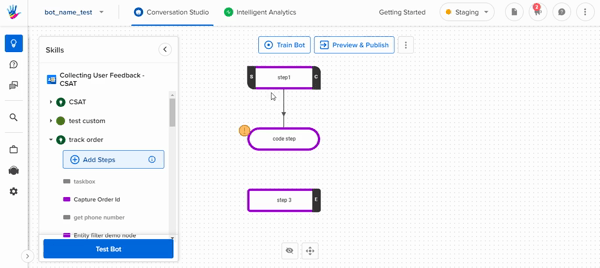

- Click on the connection between a code step and an output step to open the RHS window.
- Select the condition combination type as
AND
orOR
. - Next, select the variable from the JSON on which you want to add a condition. For example, choose the
Salary
field from the JSON output. - Next, select the conditional operator that you want to apply from the dropdown. For example, choose the operator as
Greater Than
. - Finally, enter the value to complete the rule. For example, we can enter the value as
25000
. Now the rule becomesSalary Greater Than 25000
and the step will be traversed whenever this condition is true. - You can add another rule using the
+ Add Condition
button from the top menu of the RHS window.
